without THRESHOLD - ZENDOW
Deluxe Doors without Threshold
PROPERTIES of ZENDOW SYSTEM :
- 70 mm platform,
- 5 chambers,
- optional mid seal(3rd seal),
- low heat transmission coefficient as Uf as 1.4 W/ m2K (Uf: 1.3 W/m2K with mid seal option), ,
- glass thickness options from 24 mm to 44 mm triple glass
- strong corner tightness with TPE weldable seal
- conformity of PVC profiles according to EN 12608

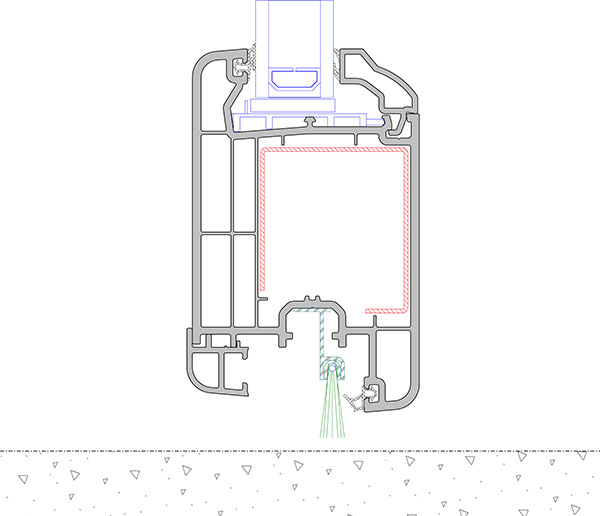

SECTION PROPERTIES:
- Inward opening door sash without threshold section,
- from inside view 112 mm (92 +20) door sash
- Double glass, 24 mm thickness
PRODUCT CODES
Frame : 12605
Sash : 12612
Glass Beads : 12640
