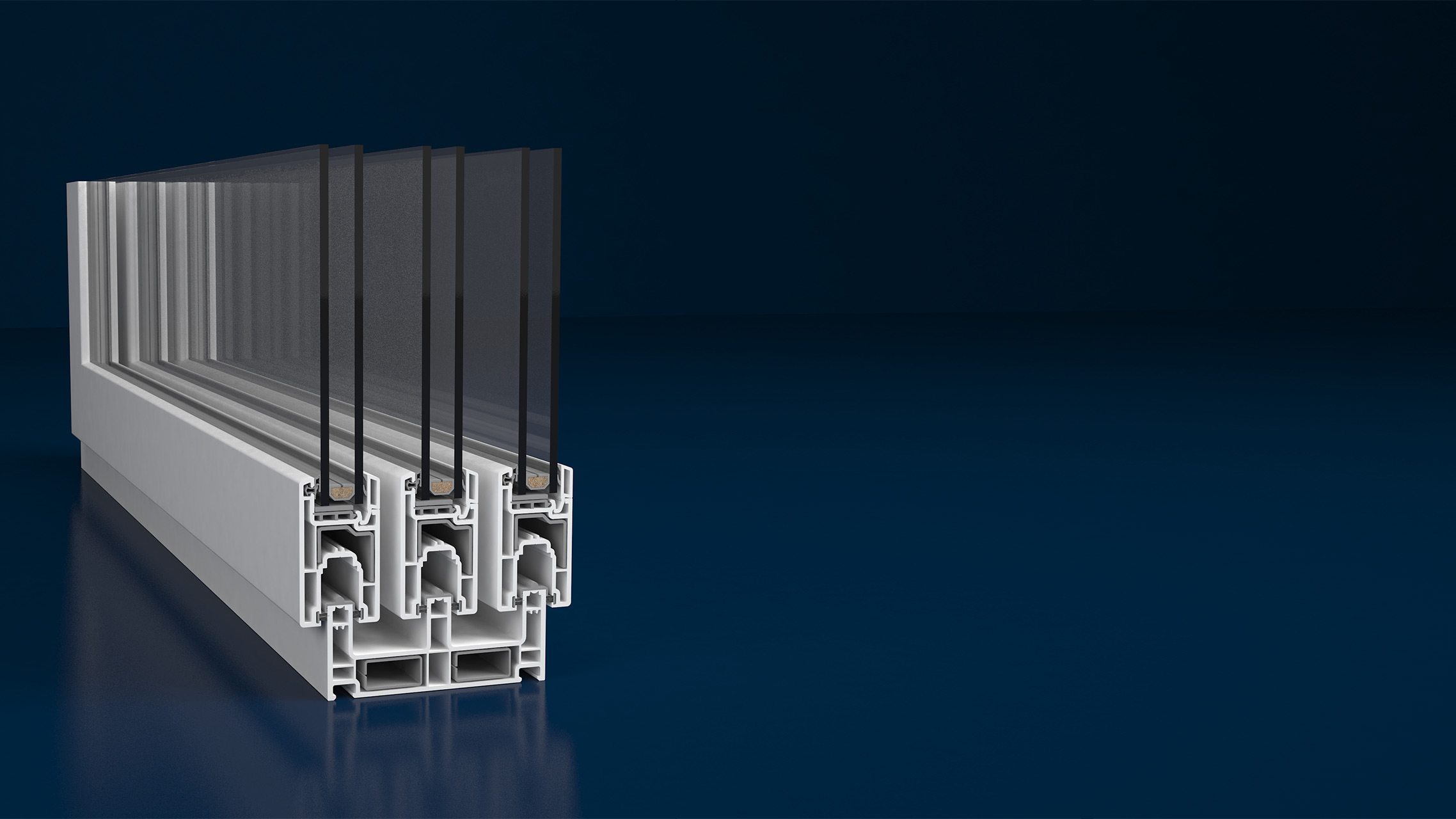

BELLA SLIDING - 3 RAIL FRAME
3 Rails Frame - Door Sash
PROPERTIES of BELLA SLIDING SYSTEM :
- 60 mm wide sliding frame with 3 chambers,
- 38 mm wide sash with 2 chambers,
- thermal transmission as Uf: 2.2 W/ m2K
- glass thickness options as 4, 6 and 20 mm thickness
- strong corner tightness with TPE weldable seal
SECTION PROPERTIES:

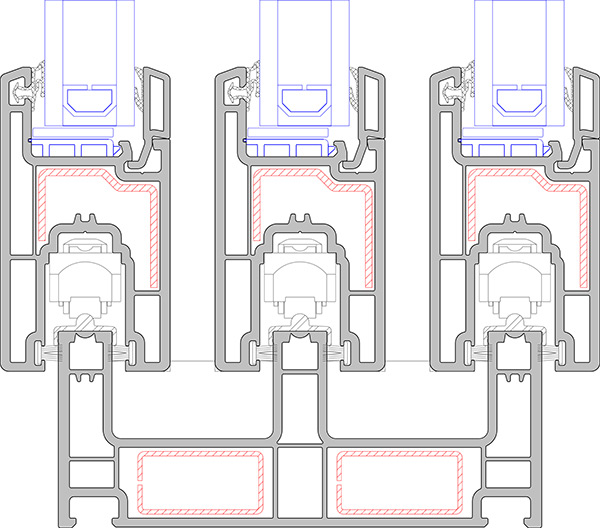

- Bella three tracks sliding frame and door sash section
- Double glass, 20 mm thickness
