SLIDING - DOUBLE RAIL FRAME
Double Rail Arch. Frame - Door Sash
PROPERTIES of SLIDING SYSTEM :
- 74 mm wide sliding frame with 3 chambers,
- 48 mm wide sash with 3 chambers,
- thermal transmission as Uf: 2.0 W/ m2K
- glass thickness options from 20 mm to 30 mm triple glass
- strong corner tightness with TPE weldable seal
- conformity of PVC profiles according to EN 12608

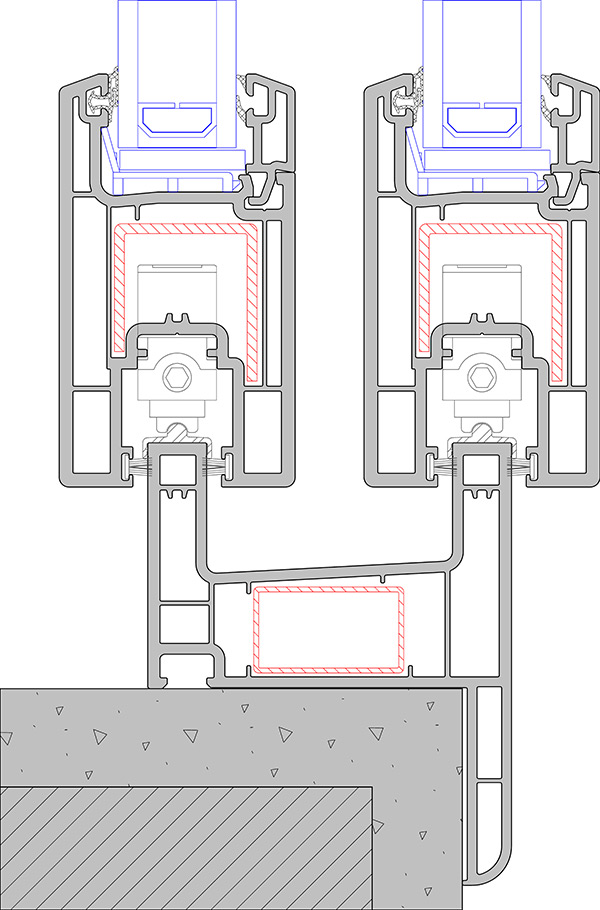

SECTION PROPERTIES:
- Sliding architrave frame and door sash section
- Double glass, 24 mm thickness
PRODUCT CODES
Frame : 12662
Sash : 12671
Glass Beads : 12648
