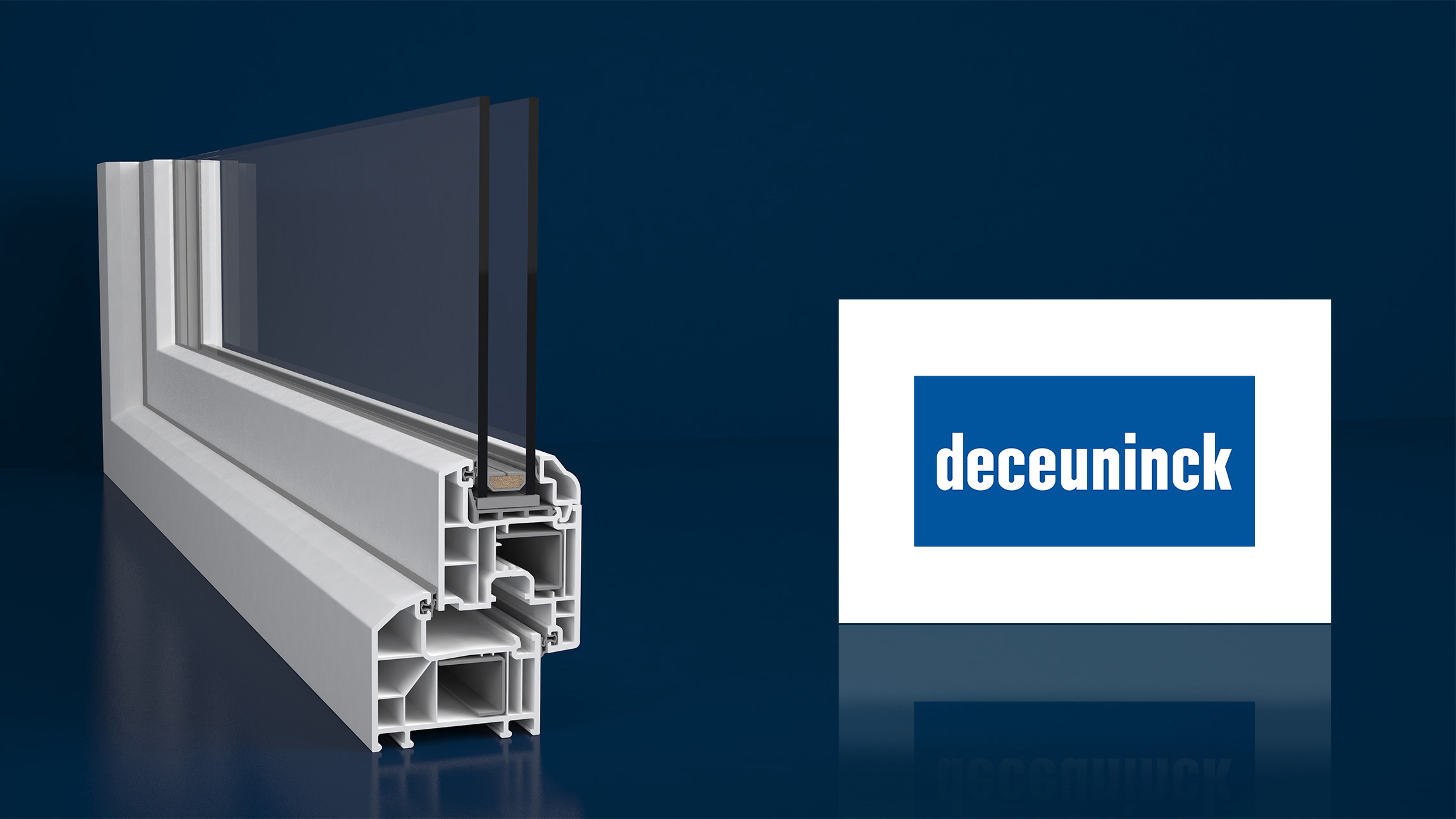

INWARD OPENING - FUSION
Classic Frame - Sash
PROPERTIES of FUSION SYSTEM :
- 70 mm wide frame,
- 4 - 5 chambers,
- low heat transmission coefficient as Uf as 1.4 W/ m2K ,
- glass thickness options from 24 mm to30 mm triple glass
- strong corner tightness with TPE weldable seal
- conformity of PVC profiles according to EN 12608

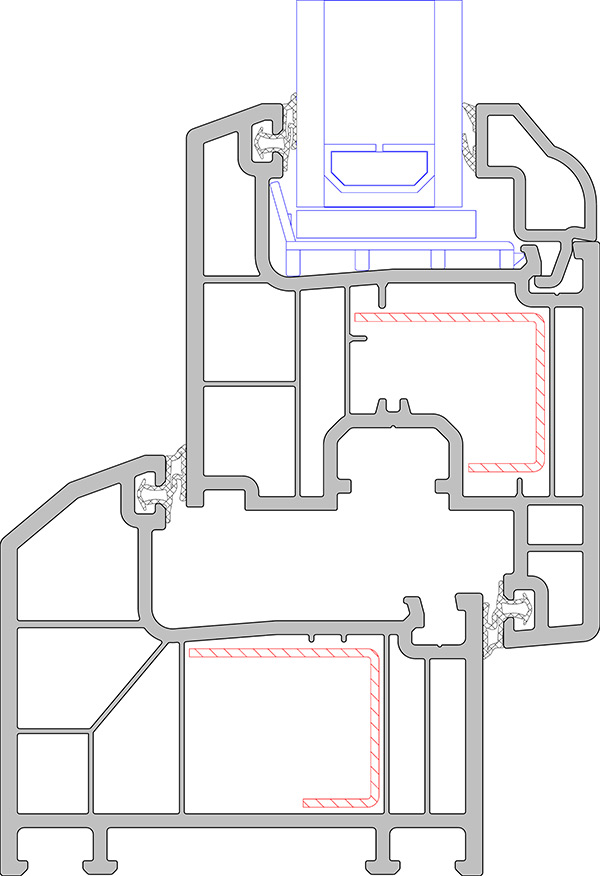

SECTION PROPERTIES:
-Fusion frame 70 and Fusion sash section,
- 4 - 5 chambers profiles
- Double glass, 24 mm thickness
PRODUCT CODES
Frame : 12309
Sash : 12334
Glass Beads : 12340
