INWARD OPENING - ZENDOW DELUXE
Arch. Frame - Door Sash 92
PROPERTIES of ZENDOW SYSTEM :
- 70 mm platform,
- 5 chambers,
- low heat transmission coefficient as Uf as 1.4 W/ m2K (Uf: 1.3 W/m2K with mid seal option) ,
- optional mid seal(3rd seal)
- glass thickness options from 24 mm to 44 mm triple glass
- strong corner tightness with TPE weldable seal
- conformity of PVC profiles according to EN 12608

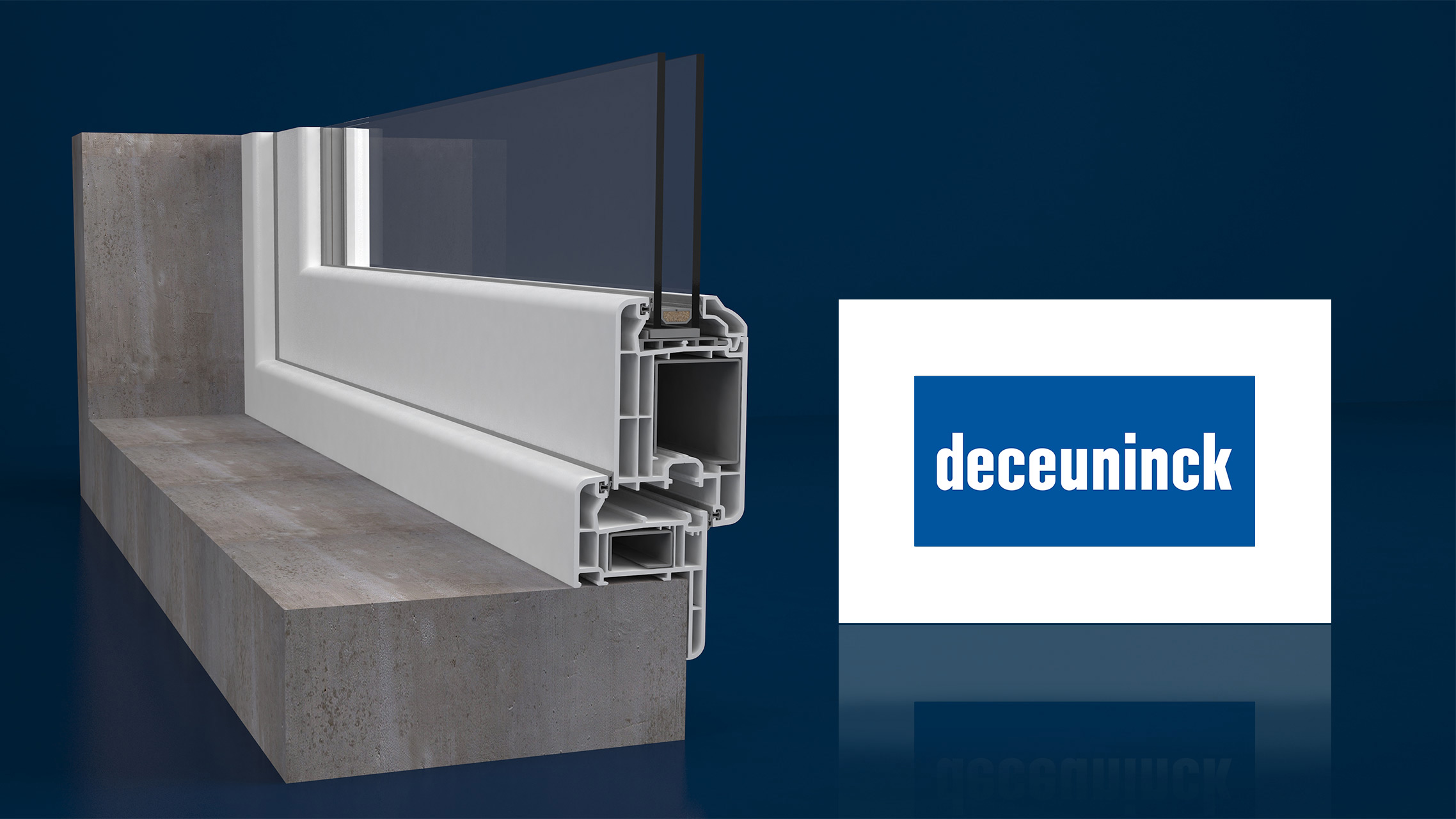

SECTION PROPERTIES:
- Standard architrave frame and inward opening door sash section,
- from inside view 112 mm (92 +20) door sash,
- 5 chambers profiles
- Double glass, 24 mm thickness
PRODUCT CODES
Frame : 12602
Sash : 12612
Glass Beads : 12640
