INWARD OPENING - ZENDOW PLUS
Classic Frame - Sash
PROPERTIES of ZENDOW SYSTEM :
- 70 mm platform,
- 5 chambers,
- low heat transmission coefficient as Uf as 1.4 W/ m2K (Uf: 1.3 W/m2K with mid seal option) ,
- optional mid seal(3rd seal)
- glass thickness options from 24 mm to 44 mm triple glass
- strong corner tightness with TPE weldable seal
- conformity of PVC profiles according to EN 12608

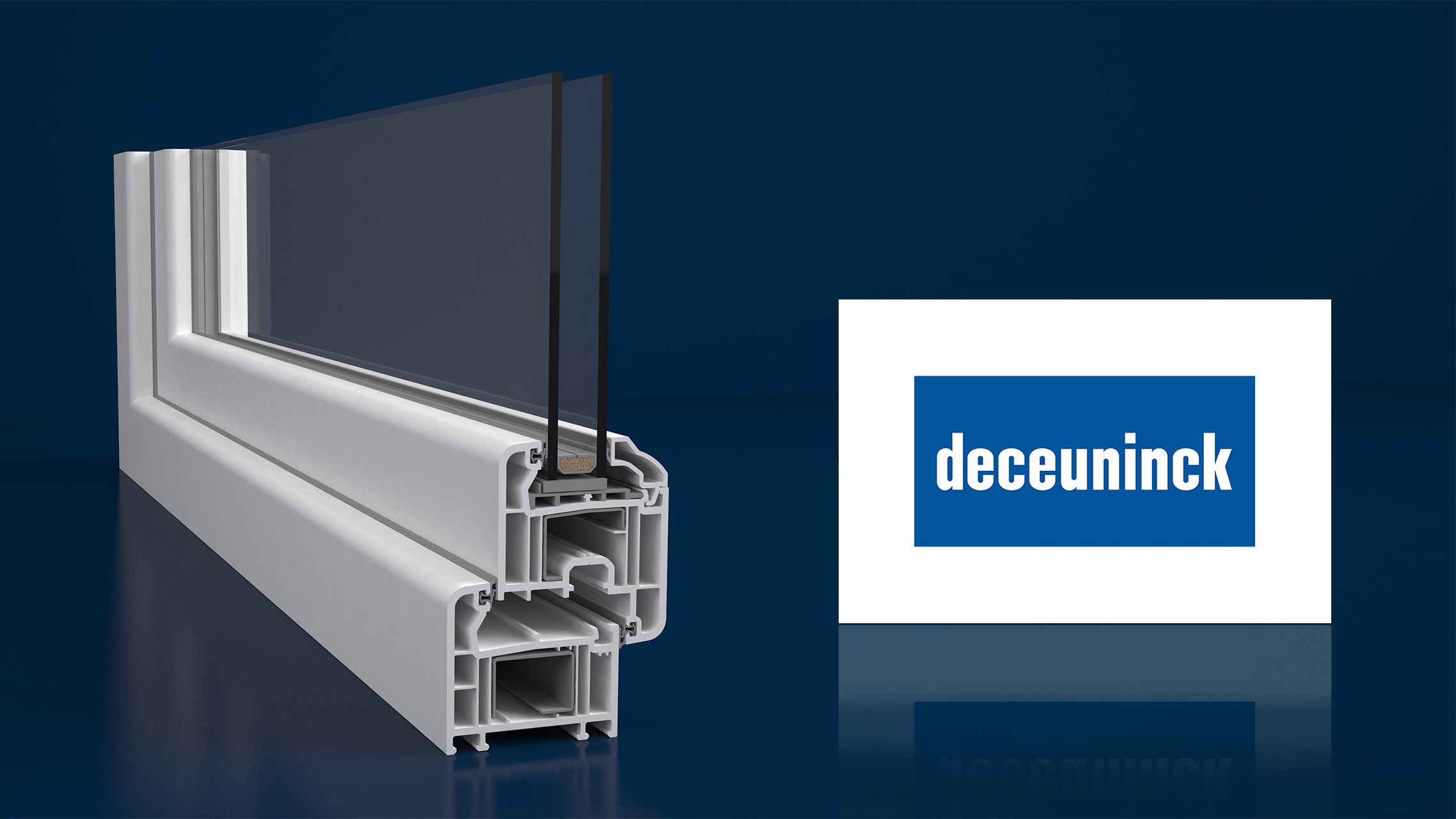

SECTION PROPERTIES:
- Zendow plus frame and plus sash section,
- A class wall thickness according to EN 12608,
- 5 chambers profiles
- Double glass, 24 mm thickness
PRODUCT CODES
Frame : 12605
Sash : 12630
Glass Beads : 12640
