HS76
HS76 PVC Frame
PROPERTIES of HS76-HEBESCHIEBE SYSTEM :
- 175 mm wide frame with 8 chambers,
- 76 mm wide sash with 4 chambers,
- High moment of inertia(Ix) for HS76 sash steel ,
- improved tightness
- thermal transmission as Uf: 1.2 W/ m2K
- glass thickness options from 20 mm to 44 mm triple glass
- strong corner tightness with TPE weldable seal
- conformity of PVC profiles according to EN 12608
SECTION PROPERTIES:

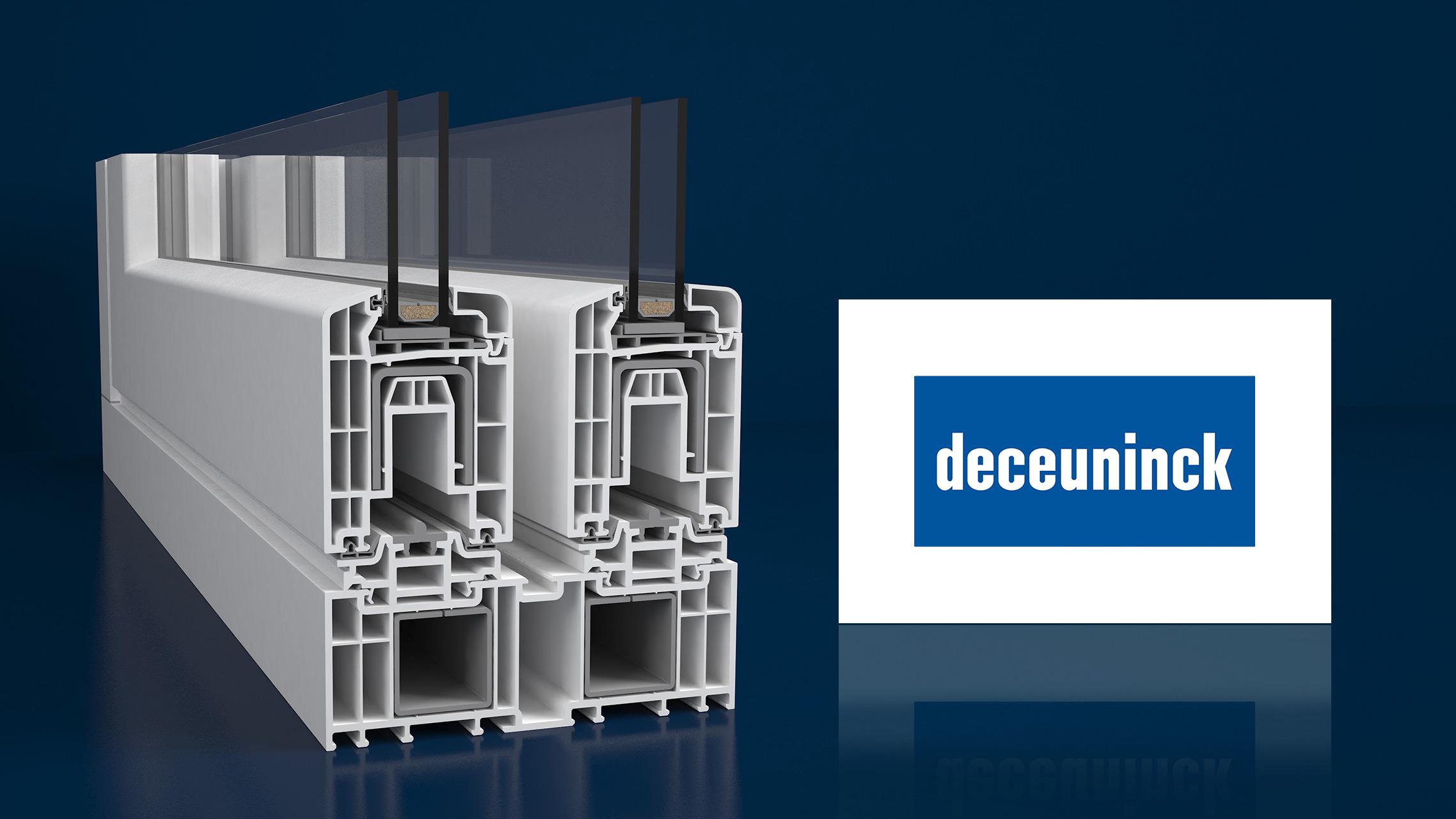

- HS76 PVC frame and sash section
- 8 chambers frame and 4 chambers sash profiles,
- Double glass, 24 mm thickness
PRODUCT CODES
Frame : 12420
Sash : 12421
Glass Beads : 12645
